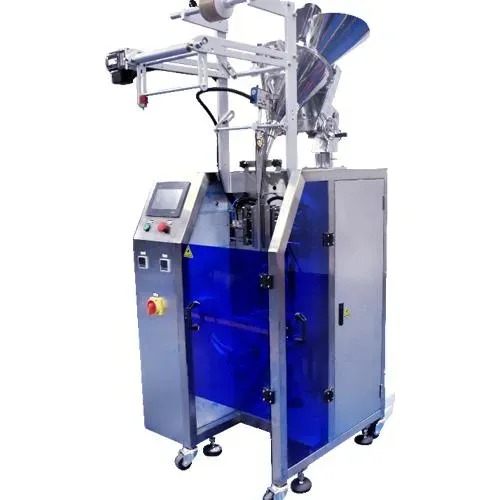

Backpack round cutting irregular shapes stick pack sachet machine

Coffee Powder Granule Filter Bag Sachet Filling Packing Machine Multi-Function Pouch Automatic Sealing Powder Packing Machine.

1. PLC control and HMI are adopted for easy operation.

2. Automatic detection function, faults will be automatically detected and displayed on the touch screen, which is convenient for maintenance and inspection.

3. Safety device, when the work is not normal or the heating tube fails, the alarm will be prompted and the prompt will be displayed on the touch screen.

4. Some imported engineering plastic bearings are adopted, no oiling is required, and the pollution to the material is reduced.

5. The knife seat is strengthened and the sealing is tighter.

6. Servo control is adopted, and the bag length can be adjusted at will.

7. High-sensitivity photoelectric color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.

Specification

Machine name	powder packing machine
Bag shape	Back seal round corner
Sealing texture	Custom rounded corners and shapes
Film width	Max.220mm（Since the mold is customized, if you need to change the size, you need to change the mold together）
Bag length	Max.180mm
Bag width	Max.100mm
Roll film diameter	300mm
Membrane thickness	5-15C (recommended 8-10C)
Packing speed	35-40 bags / minute (According to material properties)
Power	230V (Three-phase power), 50Hz, 1.2KW
