Particle powder metal separator

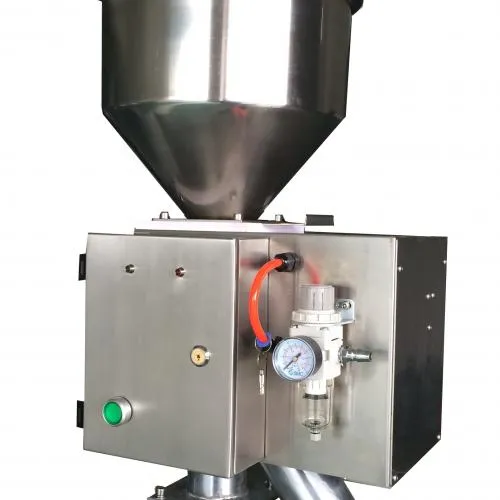

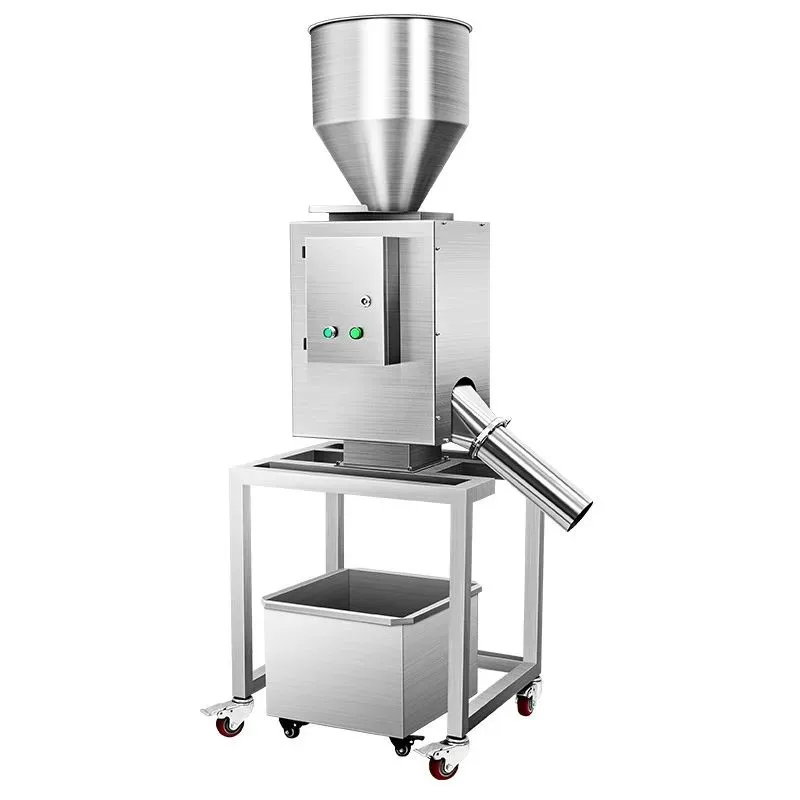

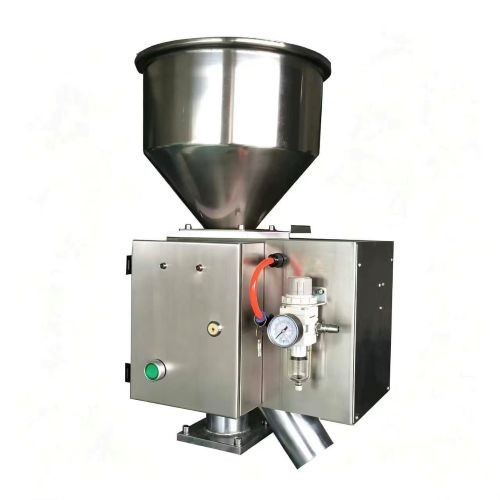

Free‑fall metal separator (gravity fall metal detector) is specially designed for vertical drop material inspection. It effectively captures ferrous, non‑ferrous and stainless steel metal contaminants inside plastic pellets, regrind scraps, powder and granular materials.

Once metal impurity is detected, the built‑in pneumatic reject valve will instantly eject contaminated materials out of the production pipeline. Compact stainless‑steel design allows direct connection to existing feeding hoppers, injection molding machines and granule processing lines, widely used for plastic, food, chemical and pharmaceutical industries

Key Features:

• Full SUS304 stainless steel body, food‑grade anti‑corrosion construction

• High sensitivity detection for ferrous, non‑ferrous and stainless steel fragments

• Pneumatic automatic reject valve, fast ejection of metal‑contaminated materials

• Equipped with air pressure regulator & pressure gauge for stable reject performance

• Large feeding hopper for smooth material feeding

• Sound‑light alarm notification while metal foreign body is found

• Compact structure, easy to install directly on feeding pipeline

• Simple disassembly, convenient cleaning and daily maintenance

• Stable anti‑interference capability for factory harsh environment

• Custom inlet & outlet size to match different production lines

Applications:

Plastic industry: plastic pellets, injection molding raw material, regrind / recycled plastic scraps

Food industry: food granules, grain, powder raw materials

Chemical industry: chemical granular & powder raw materials

Pharmaceutical industry: medicinal granule inspection

All kinds of vertical drop granule processing production lines

FAQ:

Q1: What materials can this free‑fall metal separator detect?

A: It works for all free‑fall granular and powder materials, such as plastic pellets, regrind material, food grain and chemical powder. It can pick up ferrous, non‑ferrous and stainless steel metal impurities.

Q2: Does it need compressed air to work?

A: Yes, 0.4‑0.6MPa clean dry compressed air is required for the pneumatic reject valve.

Q3: Can we customize the inlet and outlet size?

A: Yes, we support OEM custom size to fit your existing feeding pipeline and injection machine.

Q4: How to install this machine?

A: It can be directly hung and connected under your hopper or feeding pipe, no complex modification for your production line.
