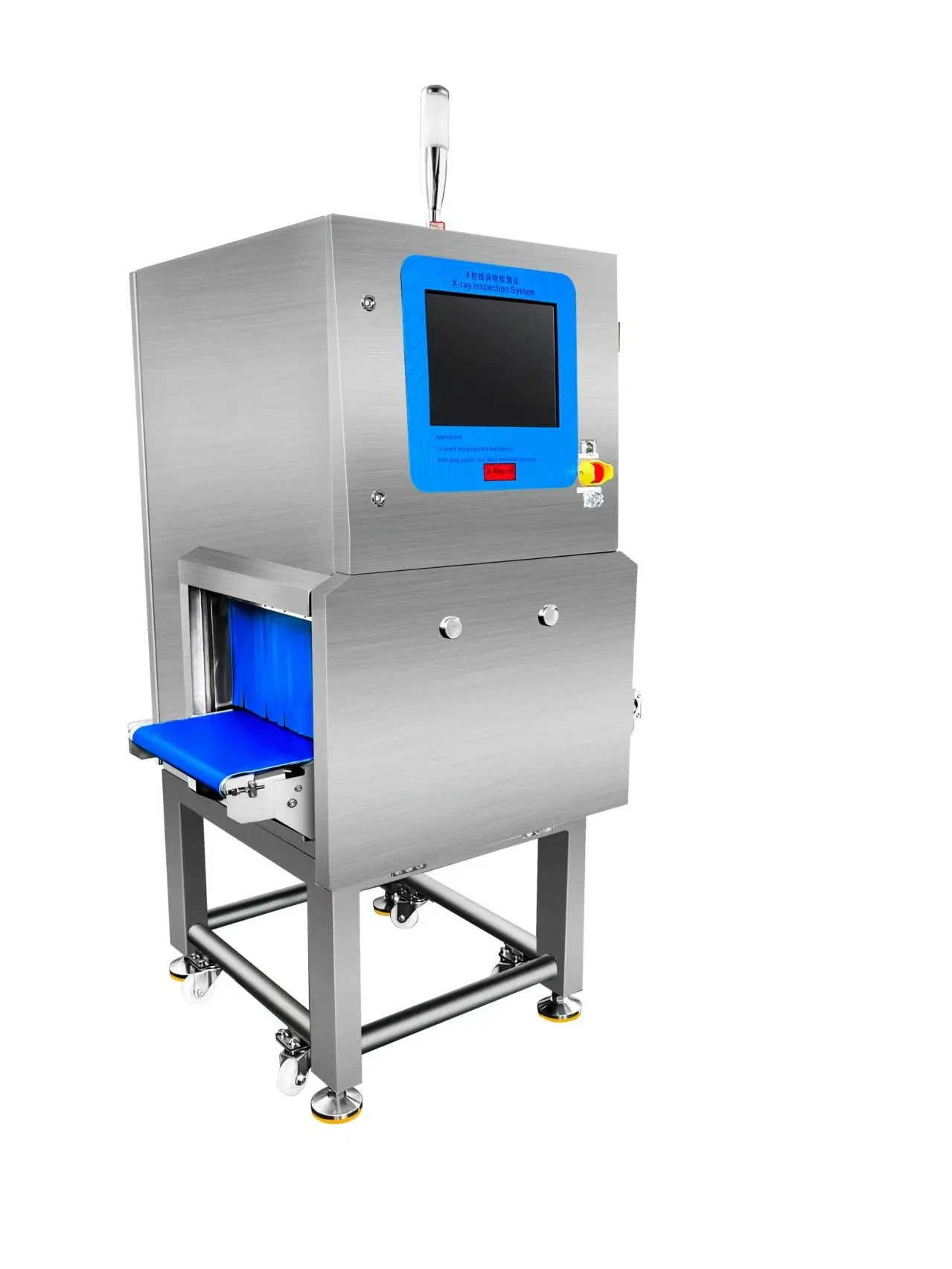

X-Ray Inspection Systems for Food Industry

The x ray machine be used to detect the metals
 and High-density non-metallic foreign matter: glass, stone,
ceramics, etc in the food industry.

               X-Ray Inspection Systems for Food Industry

1. Detection range of foreign matter:  High density materials , including metals and non-metals, such as stainless steel, iron, ceramics, glass, stones, bones, hard rubber, hard plastics

2. Detection product range: not limited to product type, packaging form, packaging material, including plastic packaging, aluminum foil packaging, glass cans, metal cans, bulk products

3.Machine detection principle: X-rays are used to irradiate the product to obtain a transmission image of the product, and image processing technology is used to determine whether the product image contains information about foreign matter.


x ray inspection.jpgX-ray Inspection Systems.jpg

Features

1. Comprehensive detection: comprehensive detection of foreign bodies, including metal and non-metal foreign bodies; Not limited to product attributes, can detect metal, non-metal packaging and canned products.

2. High accuracy:stainless steel ball accuracy up to 0.3mm diameter, stainless steel wire accuracy up to 0.2mm diameter, ceramic ball accuracy up to 1.0mm diameter, glass ball accuracy up to 1.0mm diameter

3.Easy to operate:15-inch large touch screen display, easy to achieve man-machine dialogue; The software comes with self-learning function, no need for users to manually set parameters, reducing user difficulty; Automatically save the test product picture, convenient for users to analyze and track the product late

4. Automatic shielding:According to product testing requirements, shielding areas that lead to reduced product detection

                  Specification

Tunnel width (mm)   250
Passing height (mm)   120
infeed belt speed (mm)
    10-80m/minute   adjustable
X - ray output80KVp/1.25ma
Load (kg)Max 20kg
Operation SystemWindows 2000 Professional
Bad image managemen

Stored in USB port, transfer possible (corresponding to HACCP)

Product Management

Daily/Month/Model Product Capacity Analysis

Waterproof levelIP66
x Ray leak< 1uSv/h
Work Environment

0°C ~ 35°C


   Application

The x ray machine be used to detect the metals and High-density non-metallic foreign matter: glass, stone, ceramics, etc in the food industry.

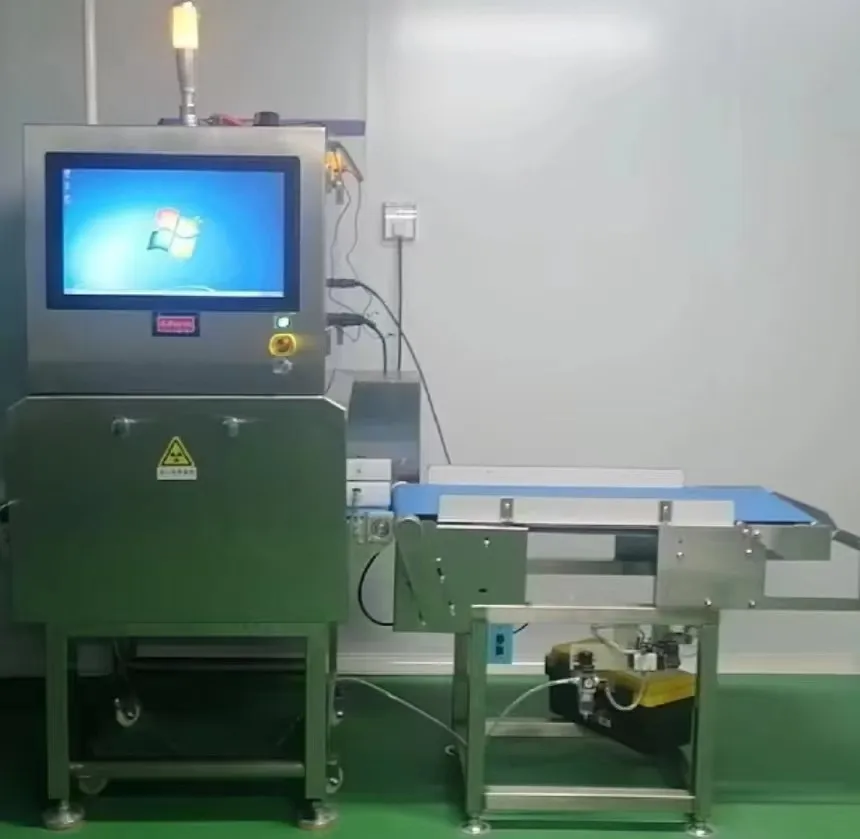

 Detect cases for your reference



The machine not only used in these industries, more details please contact us. Thanks

Dongguan Doria  Intelligent Technology company  providing powerful and reliable detection solutions for all industries.
