X-ray Inspection Machines for bulk Materials

Bulk material dedicated X-ray inspection machine, capable of detecting ferrous, non-ferrous, stainless steel and various metal foreign objects, as well as high-density non-metallic impurities including glass fragments, stones, ceramics, hard plastic blocks inside bulk granular, powdery and scattered materials. Adopt low-energy safe X-ray source + intelligent image recognition algorithm, automatic foreign body marking, sound-light alarm and automatic rejection linkage function. Strict radiation s

X-ray Inspection Machines for bulk Materials

X ray product inspection system provides highly accurate inline detection of contaminants, such as metals and non magnetic matals,glass,ceramics,raw bones,pvc and rubber. other product defects such as broken,malformed or missing products,clumping and trapped air can also be detected.

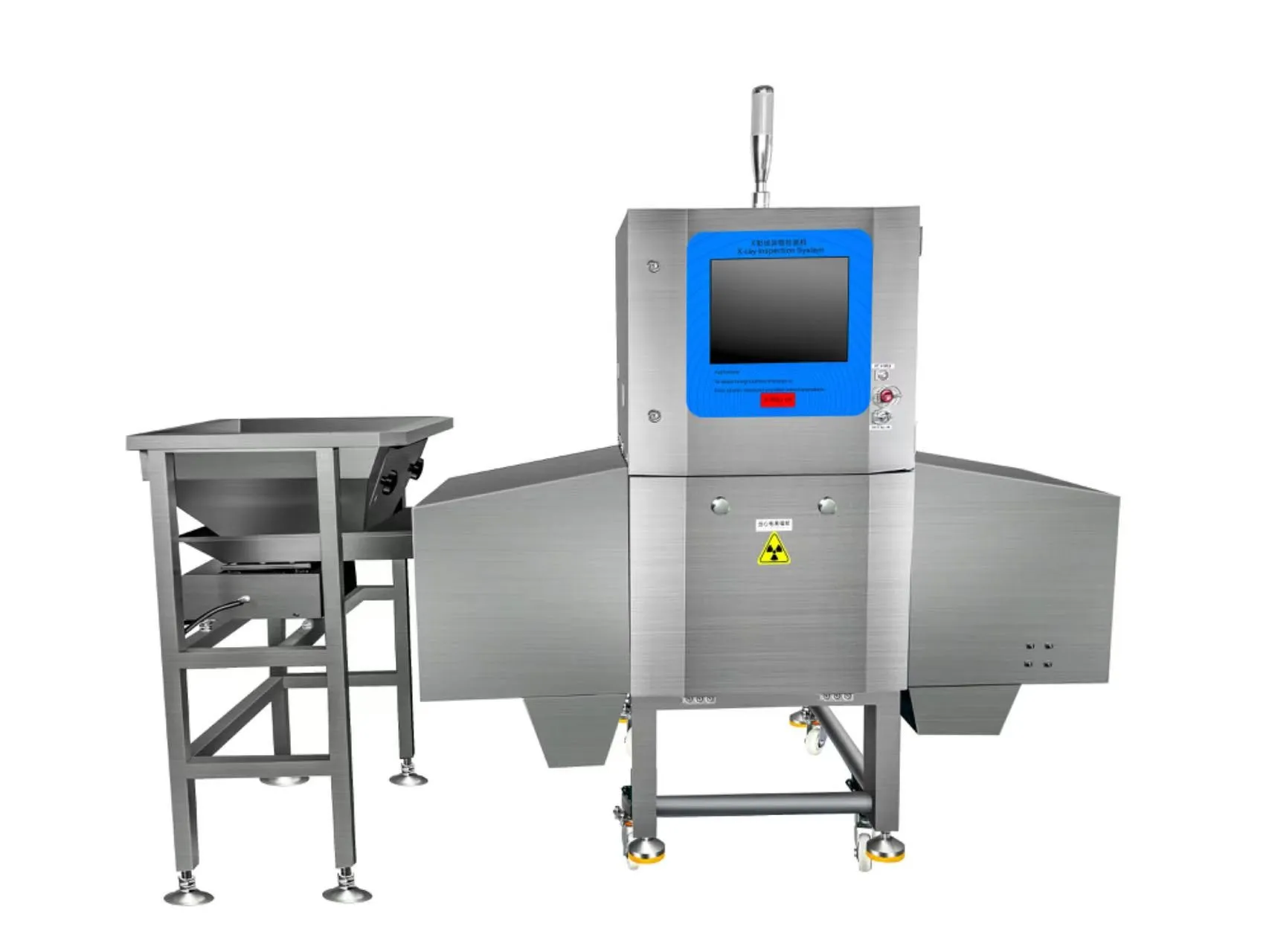

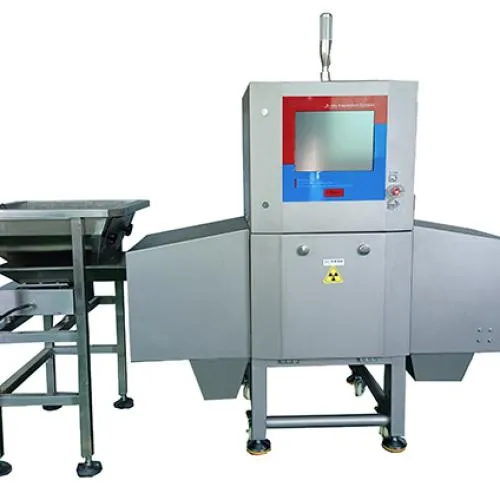

This bulk‑feed X‑ray inspection system is specially engineered for unpackaged loose bulk materials, such as grains, nuts, snacks, spices, powders, pet food and granular ingredients. Different from conventional packaged‑product X‑ray machines, it adopts feeding hopper + chute drop‑through inspection structure, continuously scanning falling bulk flow to catch hidden foreign contaminants before packaging. Protect your product safety, avoid customer complaints and product recalls.

Specification:

X ray output	Max 80kv
Tunnel width (mm)	410mm
Pass height (mm)	180mm
Control computer Monitor	Pentium-4 15" Touch Screen
Operation System	Windows 2000 Professional
Bad image management	Stored in USB port, transfer possible (corresponding to HACCP)
Product Management	Daily/Month/Model Product Capacity Analysis
Image Management	Image Save/ Print/ Analysis(Defect Size measurement)
X-ray leakage	Maximum contribution< 1u Sv/H
Protection leave	IP66 Easy to wash
Work Environment	0°C ~ 35°C
Infeed belt speed	10 ~ 80m/minute adjustable

Features:

✅ Drop‑through bulk material inspection design

Custom vibrating feeding hopper evenly spreads loose products, materials fall freely through X‑ray detection chamber. Real‑time scanning for continuous bulk‑flow production, no need pre‑packaging.

✅ Multi‑type foreign body detection capability

Identifies metal fragments, glass shards, stones, ceramic chips, high‑density plastic pieces and other hard contaminants invisible to metal detectors. Works for products with high‑moisture, salt‑rich which disturb metal‑detector performance.

✅ High‑speed stable processing capacity

Wide inspection channel, supports large throughput matching high‑volume bulk production lines. Automatic reject mechanism kicks contaminated material out instantly once hazards are spotted.

✅ Industrial‑grade stainless‑steel construction

Full 304 stainless steel machine body, waterproof & dust‑proof design, easy wash‑down cleaning, suitable for harsh food‑factory production environment. Mobile casters + adjustable feet for flexible line installation.

✅ Intelligent touch‑screen operation

User‑friendly HMI touch panel. Pre‑store product recipes for quick parameter switch. Real‑time defect image recording & production data statistics for quality traceability. Radiation safety shielded cabinet with radiation warning label, fully compliant with global safety standards.

✅ Easy integration with existing production lines

Can connect directly upstream to mixer, dryer, granulator, or downstream to packaging machine. Custom feeding hopper size & rejection solutions available upon request.

Why choose our bulk X‑ray inspection machine?

Many food factories rely only on metal detectors, which cannot pick up glass, stone and non‑metallic foreign debris. Our bulk X‑ray inspection system fills this gap for loose unpackaged goods.

Reduce product recall risk & end‑customer complaints
Lower waste rate by stable detection performance
Support food safety compliance (HACCP, BRC, IFS requirements)
Localized technical support & complete after‑sales service
Customized configuration for your unique production throughput & material properties

FAQ:

Q1: What is the difference between bulk‑material X‑ray machine and packaged‑product X‑ray detector?

A: Bulk X‑ray system inspects falling loose unpackaged materials via drop‑through chute. Packaged X‑ray uses conveyor belt for finished packed goods. This model is ideal before packaging procedure.

Q2: Can this machine detect stone and glass?

A: Yes. Unlike metal detectors, X‑ray technology can spot non‑metallic dense contaminants including stone, glass and ceramic pieces.

Q3: Can you customize according to my production line?

A: Yes. We adjust feeding hopper size, processing throughput and reject mechanism to match your existing production workflow.

What materials can it inspect?

Food bulk：nuts, beans, grains, rice, cereals, puffed snacks, dried fruits
Powder & spice：spice granules, seasoning particles, flour premix, granular additives
Pet food：dry pet kibble, animal feed pellets
Other granular bulk industrial ingredients

Detectable hazards：iron, stainless steel, copper, glass, rock/stone, ceramic, thick hard plastic fragments.

Be used to detect all the metals and Non-metallic foreign matter such as glass, stone, ceramic and other high density foreign objects in bulk materials.

Customer use site for your reference

Need more detailed specification, drawing or factory reference case for your bulk‑material inspection project? Send us your material type, expected hourly throughput and site condition. We will provide professional solution & quotation for you.
